Strut Lock Assembly



The Strut Lock Assembly is a fast, lockable solution for installing Dyn-O-Strut in single and multi-tiered arrangements, for HVAC and cable management. It is ideal for the suspension of rectangular duct, chilled beams, cable tray, unit heaters, etc. The ability to pre-fit the assembly into the strut channel on the ground, allows for minimal time working at heights. A threaded release cylinder allows for time saving height adjustment.

• Works best in conjunction with Dyn-O-Strut Deep 1-5/8” x 1-5/8” and Shallow 13/16” x 1-5/8” strut
• Can be used with single or multi-tiered applications
• For vertical, static loads
• 4:1 Safety Factor
• Quick to install and adjust
• Kit includes Strut Lock, zinc-plated washer, flat washer and strut nut
• Strut Lock can be installed on the open or flat side of strut



Strut Lock Assembly Lit Sheet >

Strut Lock Assembly Submittal >









Rapit® Drop-In Deck Hanger

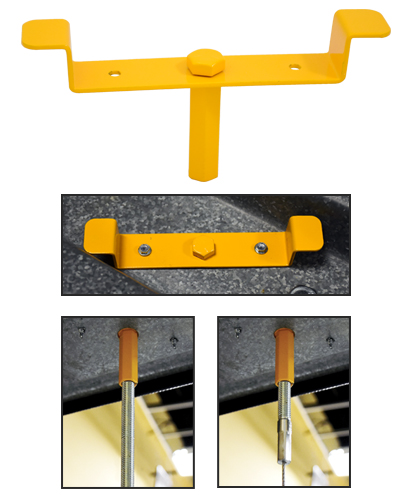

The Rapit Drop-In Deck Hanger is designed for installation in concrete-filled metal deck assemblies. RDI Deck Hangers are installed before pouring the concrete, to reduce installation costs and increase strength values. Once installed, the insert hangs below the deck surface for easy installation of threaded rod or Dyna-Studs. Can be used to hang HVAC ductwork, pipe, strut, conduit, lighting, signage, sprinkler systems and more. The applications are endless!

• 3/8” diameter UNC female threads
• Fast & easy to install
• Low profile for less trip hazard on jobsite
• Can be used through or between ribs on metal decking
• Internal threads eliminate the need for couplings
• Built-in screw holes for multi-position solid deck mounting
• 10x3/4 High Head Pro Point screws included for convenient installation
• Yellow powder coating for durability, safety & easy identification
• Designed to be used with BIM location systems



Rapit Drop-In Deck Hanger Lit Sheet >

Rapit Drop-In Deck Hanger Submittal >

Rapit Drop-In Deck Hanger Instructions >





Dyna-Chain

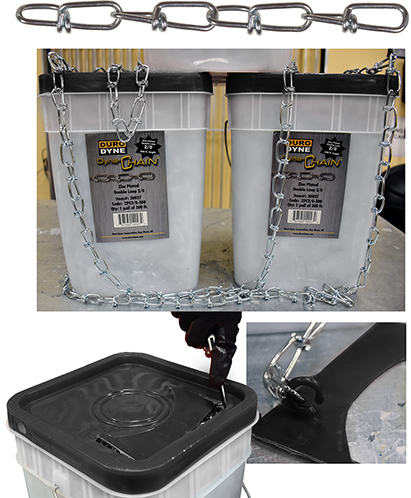

Dyna-Chain from Duro Dyne is a Zinc Plated Double Loop 2/0 chain.

This is a steel constructed economical utility chain. It has a 255 lb working load limit ideal for hanging lightweight equipment and lighting. Often used by contractors as a theft deterrent for locking ladders and job boxes, the applications are virtually endless!

It is sold in a convenient bucket to make use on the job site easier with a pre-scored top and built in loop to keep track of the end of the chain.

• Sold 300 ft per pail.
• Cut Dyna-Chain with Duro Dyne Cable Cutter
• Applications: Industrial, Mechanical, Residential, Commercial, and Electrical



Dyna-Chain Lit Sheet >

Dyna-Chain Submittal >





Quik-Twists

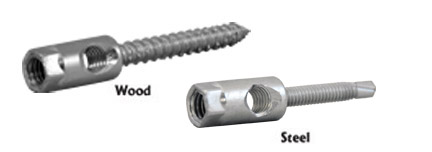

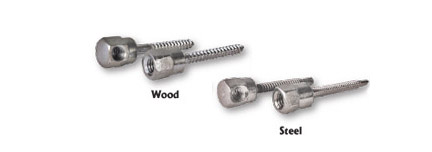

When preparing to suspend HVAC equipment, ductwork or accessories, threaded anchor points are often required. Quik-Twists from Duro Dyne are side or vertical mounted fasteners that provide attachment points for steel threaded rods and other assemblies.

• Available for steel or wood surfaces.
• No pilot hole is needed
• All fasteners are zinc plated for corrosion resistance
• Chucks sold seperately for easy installation



Quik-Twist Lit Sheet >

Quik-Twist Submittal >



Please see literature for additional Quik-Twist accessories.





Cable Cutter

When cutting wire cable it is important to use a recognized wire cable cutter such as the Duro Dyne cutter detailed here. This will ensure that the form of the rope is maintained prior to insertion in the Dyna-Tite.

▪ Safety Catch
▪ Hand held cutting tool for WC2-CL6, WC3-CL12, WC4-CL18 and WC6-CL23 Wire Rope
▪ Spring Loaded For Ease Of Use
▪ 5” Long Handles For High Leverage
▪ Hardened Steel Blades For Durability
▪ Vinyl Coated Handles For Comfortable, Non-Slip Grip

Image 2







WC8-CL25 Cable Cutter

When cutting wire cable it is important to use a recognized wire cable cutter such as the Duro Dyne cutter detailed here. This will ensure that the form of the rope is maintained prior to insertion in the Dyna-Tite.

▪ WC8-CL25 Wire Rope Cutting Capacity
▪ Hardened Steel Blades For Durability
▪ Vinyl Coated Handles For Comfortable, Non-Slip Grip

Image 2







Spiral Buckle

This Heavy Galvanized Steel buckle is designed to suspend round and oval ductwork from ceiling joists or beams with the use of threaded rod up to 3/8” in diameter. Simply place 1” hanging strap in one side of the buckle then around the material and into the other side of the buckle. When the strap is correctly inserted through the slots, the strap is locked into the buckle by the weight of the duct.

        With Eye bolt             With threaded rod

Spiral Buckle Lit Sheet >

Spiral Buckle Submittal >







Eye Bolt & Nut

▪Eye Bolt & nut (3/8’’-16 x 2-1/2’’)
▪Weight limit of 400 lbs.

Image 2





















Image 2
Dyna-Tite Product Catalog >

Image 2
Dyna-Tite Engineer Binder >

Please be patient when downloading the Engineer Binder.
