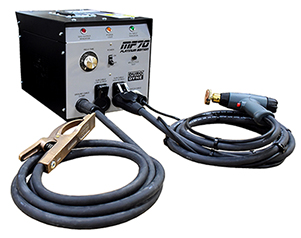

PLATINUM EDITION MF70
PORTABLE PINSPOTTER

The Platinum Edition MF70 has been developed from over 30 years of portable pinspotter history at Duro Dyne...and now has a new look to celebrate our 70th Anniversary! The specially designed welding transformers allow it to deliver precisely timed welding to the gun tip, with more power than previous models. The MF70 has a compact design for easy handling, fitting anywhere in a shop.

The MF70 will weld pins from 1/2 inch to 4 inches long on steel from 26 to 16 gauge. Proven solid-state weld control circuitry guarantees years of reliable, trouble-free service in your shop.

Image 2 MF70 Lit Sheet >
MF70 Manual >























For previous version of machine, please click here.

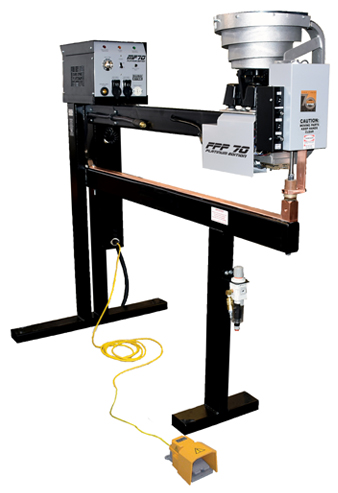

PLATINUM EDITION FPP70
CONVERSION PLATFORM PINSPOTTER

The latest breakthrough from the innovators of insulation fastening is the Platinum Edition FPP70, a pinspotter platform that enhances the capabilities of a compact pinspotter. The FPP70 works in conjunction with the Duro Dyne MF70 compact pinspotter (sold separately) to allow it to be utilized as both a hand held pinspotter and a fixed head pinspotter. This provides the customer with greater capabilities at a lower cost. The FPP70 requires 110 volts and 80 PSI in addition to the power required by the MF70 (208-230 VAC single phase with 60 amp circuit protection). Please note the FPP70 will not work if not powered by an MF Pinspotter.

Image 2 FPP70 Lit Sheet >
FPP70 Manual >

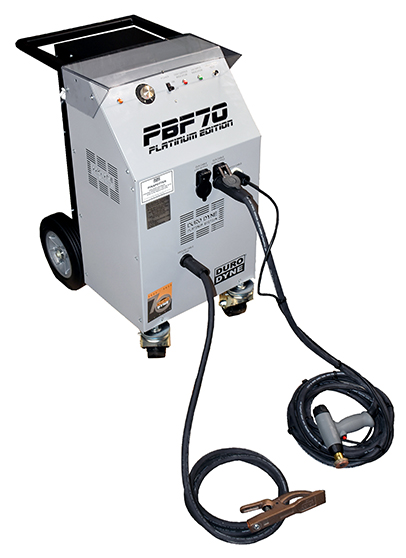

PLATINUM EDITION PBF70 HEAVY DUTY PINSPOTTER

The PBF70 welds BDEP, CTC, SSP, CP, FTC, PN or LN type fasteners to ductwork from 26 to 16 gauge. Will accommodate pins up to 4".

Input voltage: 208-230 V 60 HZ single phase.

100 amp service.

Place a pin on the magnetic tip, insert the pin through the insulation, give the pin a 1/4 twist and depress the trigger switch. For LN type fasteners use a TPL2 tip. For PN type fasteners use a TP2 tip.

Image 2 PBF70 Lit Sheet >
PBF70 Owner's Manual >























For previous version of machine, please click here.

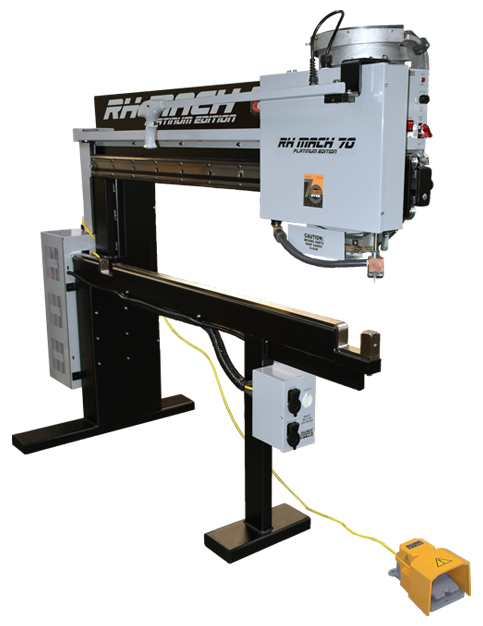

PLATINUM EDITION RH MACH 70
ROLLING HEAD AUTOMATIC PINSPOTTER

The Platinum Edition RH MACH 70 welds BDEP, CTC, SSP, CP & FTC type fasteners to ductwork up to 18 gauge. It requires 220v, 50 to 60hz service, fused for 100 amps. A source of 85 psi air is required. Position a fastener over the insulation and depress the trigger switch. The machine inserts the fastener through the insulation and welds it to the steel.

Image 2 RH Mach 70 Lit Sheet >
RH Mach 70 Owner's Manual >



























For previous version of machine, please click here.

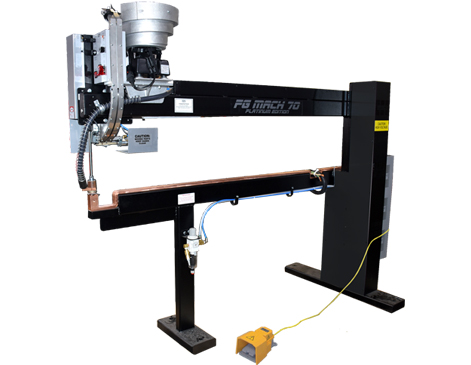

PLATINUM EDITION FG MACH 70
AUTOMATIC BULK FEED PINSPOTTER WITH 5 FOOT THROAT

The Platinum Edition FG Mach 70 Pinspotter was designed utilizing the best of current technologies to provide greater power and reliability for insulation fastening. The inherent minimal material handling and the use of welded pins will insure your shop a cost efficient, quality product. Our upgraded FG Mach 70 machine is capable of welding pins up to 4” to address the higher R-value insulation now being specified throughout the industry.

Image 2 FG Mach 70 Lit Sheet >
FG Mach 70 Owner's Manual >

















For previous version of machine, please click here.







BALL TRANSFER

Roller feed tables enable work to be easily positioned by the operator; in many cases with just one hand. Productivity is increased and worker fatigue minimized.

Image 2 Ball Transfer Lit Sheet >













OPTIONAL LIFT KIT FOR FG & RH PINSPOTTERS

An optional machinery lift kit is also available for a custom ergonomic work space. Multi-Height Pinspotter Lift Kit will allow for height increase of 4” or 6”.

Image 2



















HSMH- HIGH SPEED MULTI HEAD PINSPOTTER

●   Full production capacity from ½ inch pins on light gauge material all the way up to 10 foot sheets of 16 gauge material pinned with 2 inch pins at 6 inch centers at 50 feet per minute.
●   Newly designed pin feed system accommodating ½ inch to 2-1/8 inch pins with no change of bowls required.
●   Open Air design that allows operator a full view of material as it passes through the line.
●   Ambidextrous Control Console with Umbilical cord allows operation from either side of fabrication line, to accommodate L to R and R to L work flow.
●   Available in both 5 head and 6 head versions for 5 and 6 foot wide lines.
●   Non-slip belts & magnetic hold downs to insure positive ground and stability during the weld cycle.
●   Fold up gantry to allow easy replenishment of pins.
●   Monitor pin level from the floor with the high mount mirror system.

HSMH Lit Sheet >
HSMH Owner's Manual >

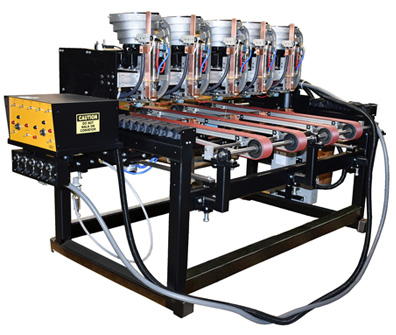

MH507A MULTI HEAD PINSPOTTER

The MH507A Multihead represents the finest production-line Pinspotter available today. The carriage design eliminates the need for stopping the material for installation of fasteners. Combined with welded clip pins; the carriage ensures a quality product at production speeds of up to 25 ft per minute. The solid state components, proven on thousands of machines, are centrally located to make preventive maintenance easy. All components are easily reached through simple access panels.

MH507A Multihead Owner's Manual >







For previous version of machine, please click here.

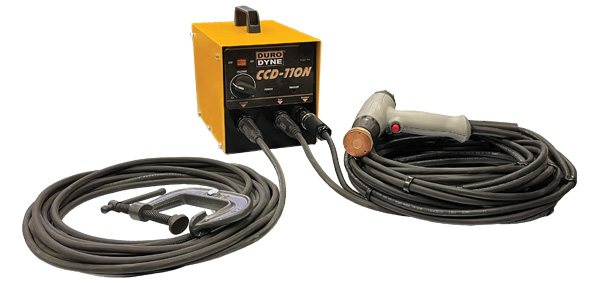

CCD-110N COMPACT PINSPOTTER

The CCD-110N, Capacitor Discharge Welder, is designed for the convenience and comfort of the operator. It is powered by a 110 volt power source so it is ideal for smaller shops and light industrial applications. It will weld pins from ½” to 4” long onto steel from 26 to 20 gauge. The CCD-110N is a smart choice for insulation applications. The CCD-110N also features a weld capacity of up to ¼” steel and stainless steel for enhanced versatility.

Image 2

















CCD-110N Lit Sheet >
CCD-110N Owner's Manual >
CCD110N Weld Tools Manual >



For previous version of machine, please click here.
